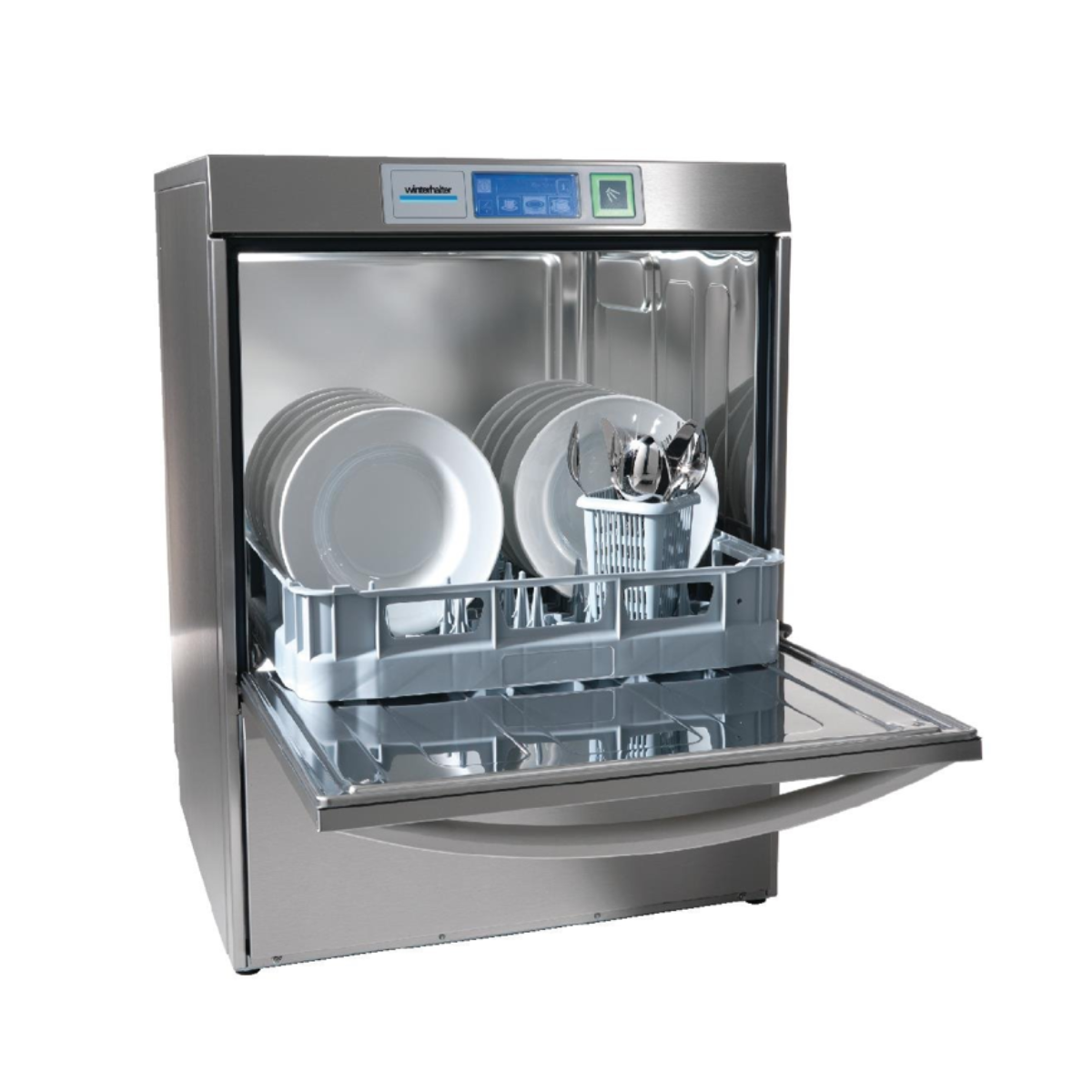

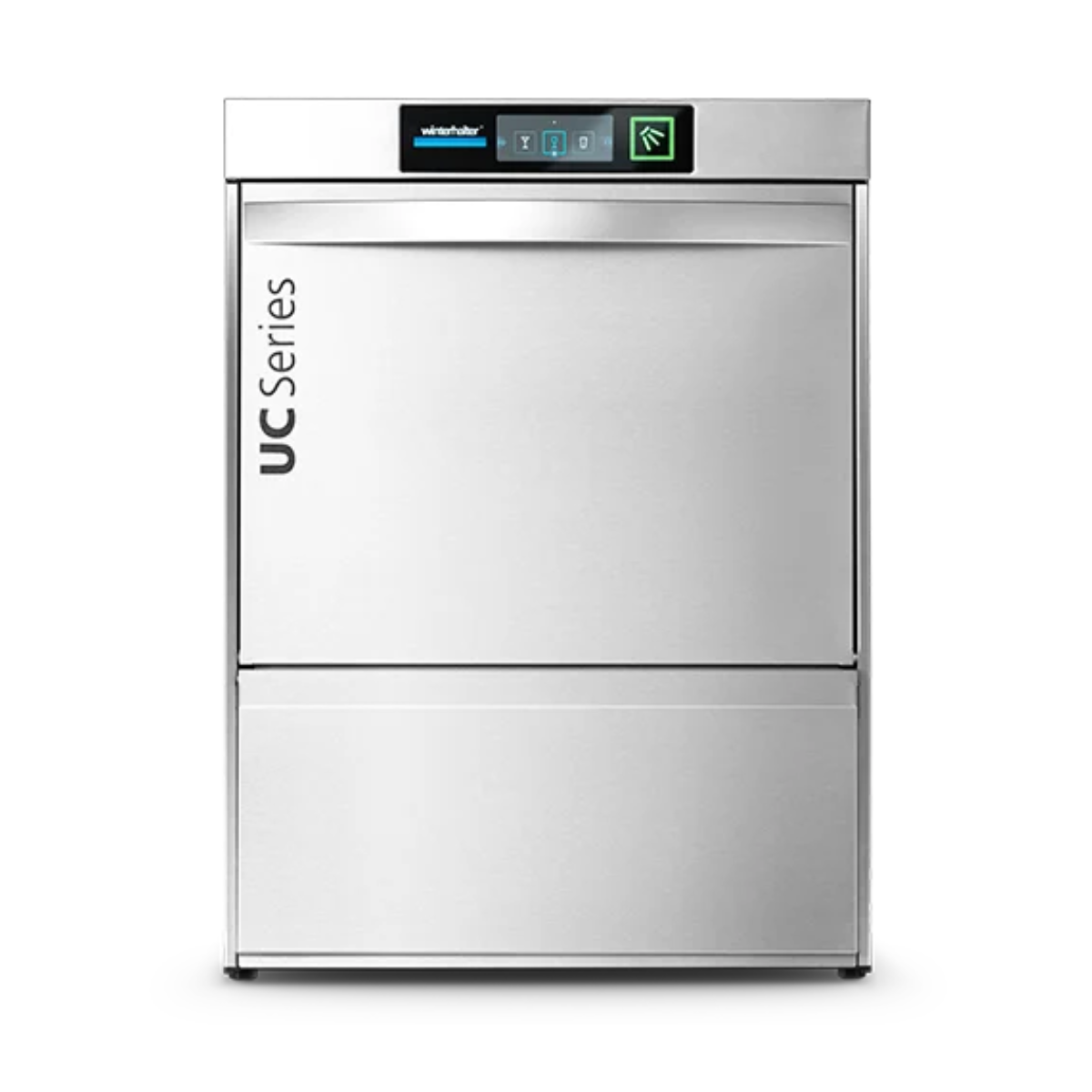

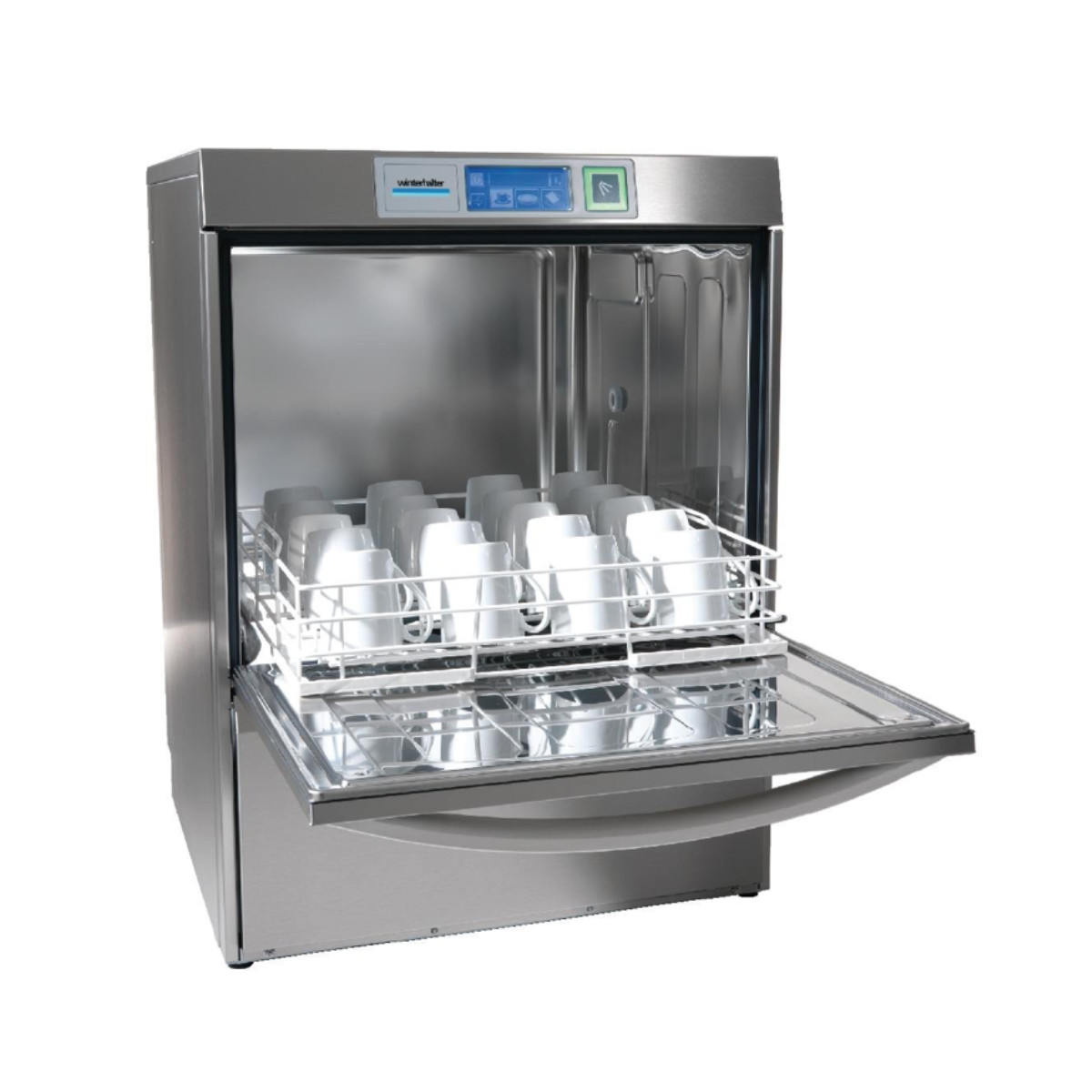

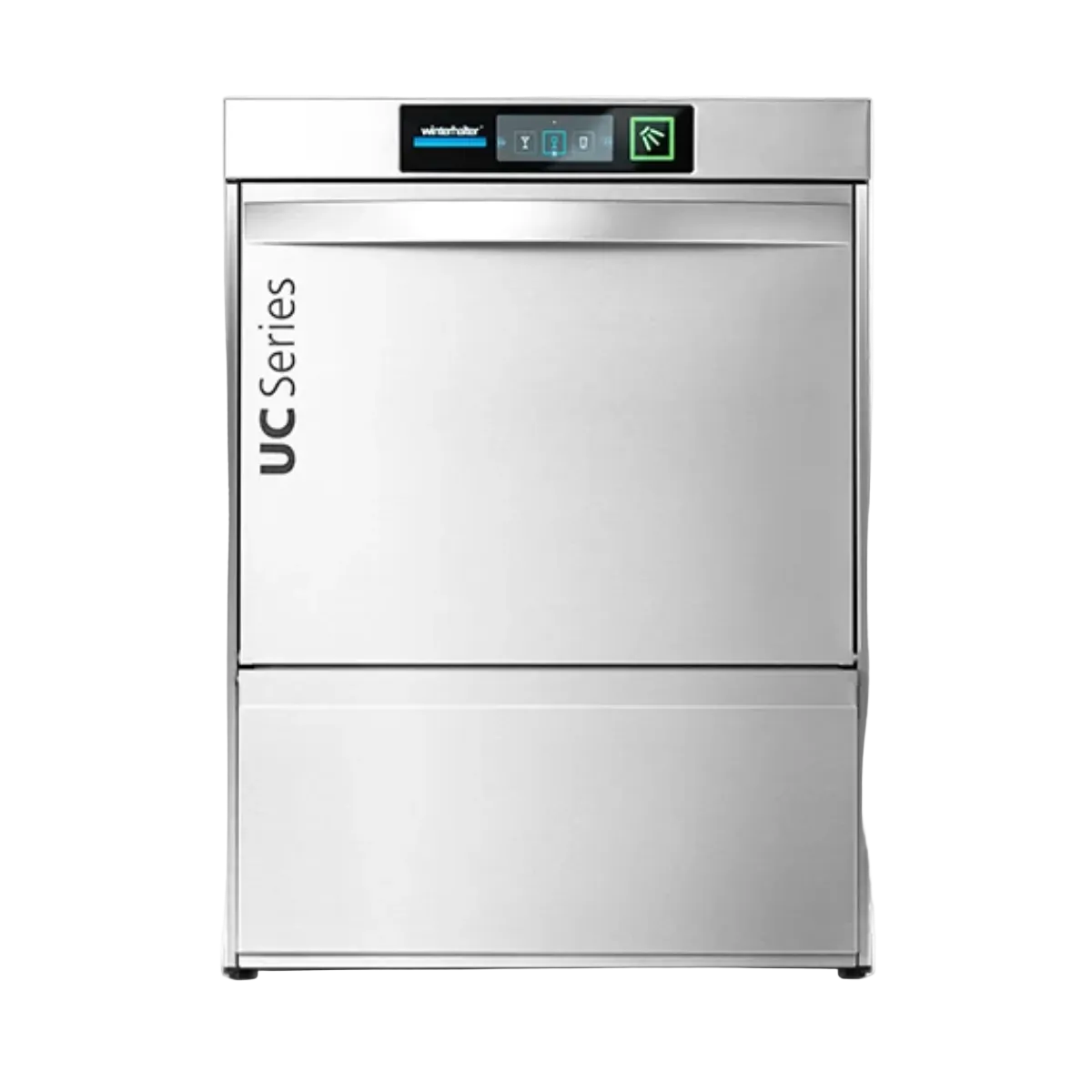

Winterhalter UC-XL Undercounter Warewasher - 500mm Rack

Name: Winterhalter UC-XL Undercounter Warewasher - 500mm Rack
Brand: Winterhalter
SKU: UC-XL
Price: 10488.15 AUD
Availability: InStock

$10,488.15

Sale Sold out

GST calculated at checkout

✔ Fast dispatch Australia-wide

Payment options

Credit Card
PayPal
Invoice / Bank Transfer
SilverChef Rental Available

Learn more about SilverChef Rent-Try-Buy

The Winterhalter UC-XL Undercounter Warewasher is designed for commercial kitchens that require a high-capacity undercounter solution for washing dishes, glassware, cutlery or mixed loads. As the largest model in the UC Series, it provides additional internal height for larger wash items while delivering reliable, efficient performance.

Featuring intuitive touchscreen controls, adjustable wash programmes and Winterhalter's VarioPower wash system, the UC-XL adapts to different wash requirements with ease. Its economical operation, durable stainless steel construction and advanced filtration system make it an ideal choice for restaurants, hotels, cafés and hospitality venues seeking consistent cleaning results.

Key Features

Large-capacity undercounter warewasher.
Suitable for washing dishes, glassware, cutlery or mixed loads.
Available as a dishwasher, glasswasher, cutlery washer or bistro washer configuration.
Three programmable wash programmes.
VarioPower adjustable wash pressure system.

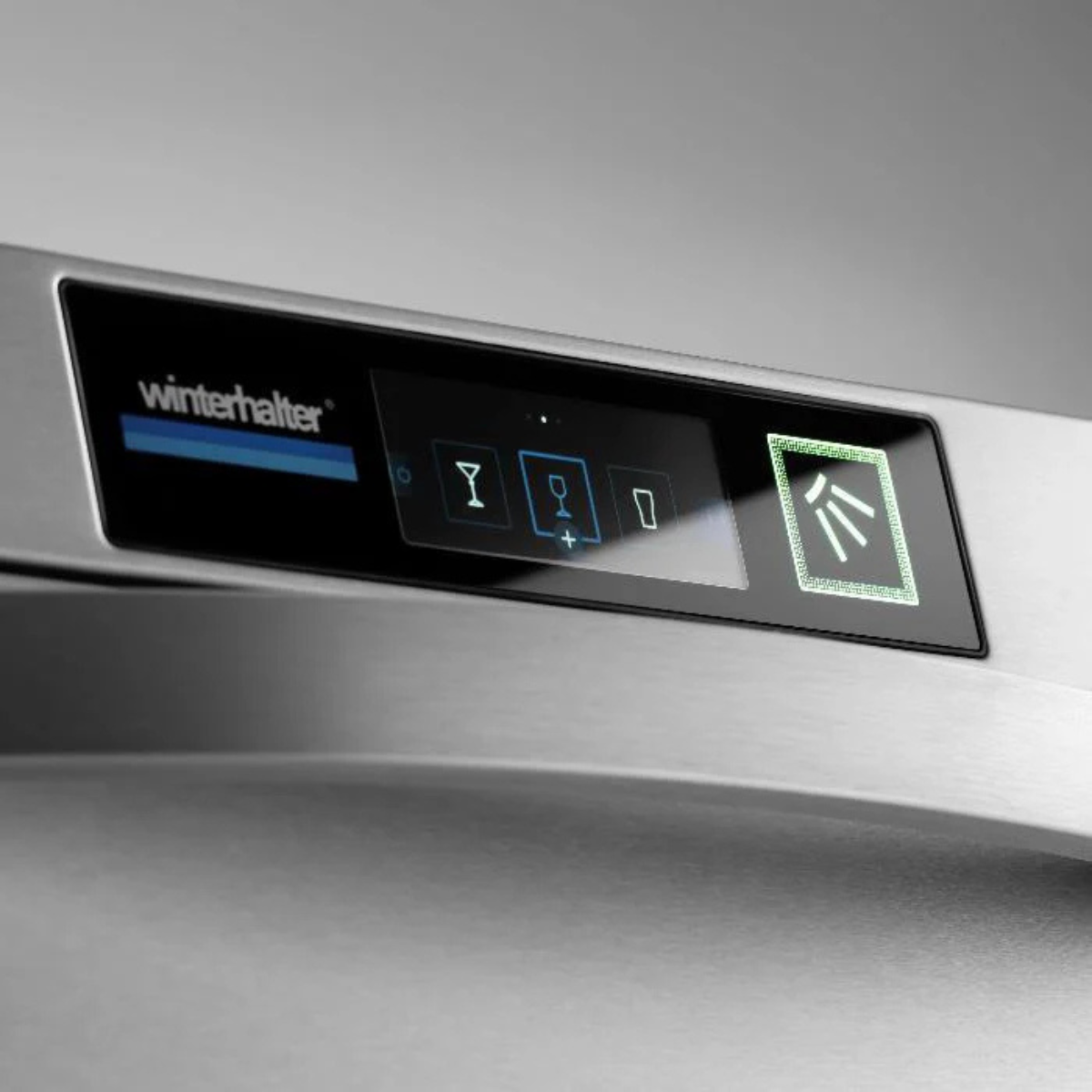

Full-colour touchscreen display with programme and progress indicator.
Quadruple filtration system.
Guided self-cleaning programme.
Integrated detergent and rinse aid dosing.
Drain pump included.
Double-skinned housing and door.
Removable quick-release wash fields.
Hygiene logbook and operating data display.
LAN and WLAN connectivity.
USB interface for software updates.

Specifications

Rack Size: 500 × 500 mm or 500 × 540 mm
Clear Entry Height: 404 mm
Wash Programmes: 3 (configuration dependent)
Rinse Water Consumption: 2 litres per cycle
Controls: Full-colour touchscreen display
Wash System: VarioPower adjustable wash pressure
Filtration: Quadruple filtration system
Connectivity: LAN, WLAN and USB
Drain Pump: Included
Construction: Double-skinned housing and door
Dimensions: 600 × 637 × 820–855 mm (W × D × H)
Tank Capacity: 15.3 L
Noise Level: 55 dB(A)
Weight: 69 kg (net) / 79 kg (gross)
Standard Inclusions: 500 × 500 mm flat rack, 500 × 500 mm plate rack, 1 m flexible waste hose, 1 m flexible water connection hose, 15A plug and lead

Delivery & Install Options

Delivery Only (Kerbside Drop)
Delivered in box via tailgate truck. Left at kerbside or loading area. No unpacking or placement.

Delivery + Uncrating & Placement
Delivered to your premises, unpacked, positioned in place, and all packaging removed. No installation included.

Delivery + Installation
Includes delivery, uncrating, positioning, and rubbish removal. Installed to adjacent existing services (power, water, waste), tested and ready for use.

POA
For some regional and remote areas, delivery costs can vary depending on location and access requirements. Customers in these areas can still place their order online as normal, however delivery will be quoted separately after checkout. A separate invoice for freight charges will then be sent prior to dispatch.

Important Note
Pricing assumes clear site access. Additional charges may apply for stairs, tight access, or lifting over obstacles. Please advise any access requirements when ordering.

Maintenance Plan

Maintenance Plans are available for selected products and are quoted on application (POA). Pricing and coverage will vary depending on the manufacturer, machine type, location, and servicing requirements. These plans are designed to help keep your equipment running efficiently and minimise downtime through scheduled servicing and preventative maintenance. Please contact our team for a tailored maintenance quote and available options for your machine.
