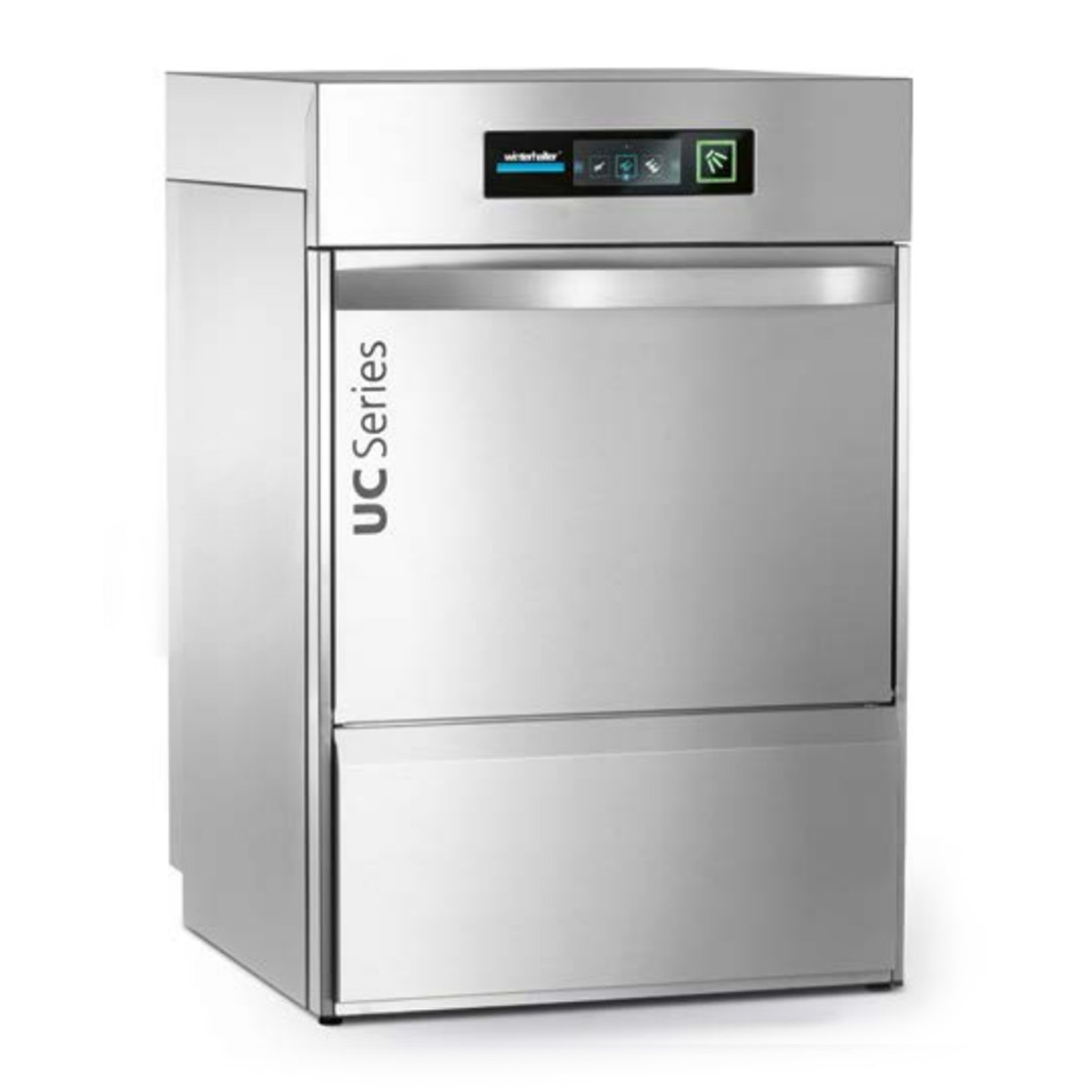

Winterhalter UC-XL Energy Undercounter Warewasher - 500mm Rack

Name: Winterhalter UC-XL Energy Undercounter Warewasher - 500mm Rack
Brand: Winterhalter
SKU: UC-XL Energy
Price: 13674.15 AUD
Availability: InStock

$13,674.15

Sale Sold out

GST calculated at checkout

✔ Fast dispatch Australia-wide

Payment options

Credit Card
PayPal
Invoice / Bank Transfer
SilverChef Rental Available

Learn more about SilverChef Rent-Try-Buy

The Winterhalter UC-XL Energy Undercounter Warewasher is designed for commercial kitchens that require extra capacity for larger wash items while maintaining outstanding energy efficiency. Featuring an integrated air exhaust heat recovery system, it helps reduce energy consumption and creates a more comfortable kitchen environment without compromising cleaning performance.

With an extra-large wash chamber, 500 × 500 mm rack compatibility, intuitive touchscreen controls and the VarioPower wash system, the UC-XL Energy is ideal for washing dishes, glassware, cutlery, 1/1 GN containers, bakery trays and small crates. Its quadruple filtration system, double-skinned construction and Connected Wash capability deliver dependable performance for demanding hospitality operations.

Key Features

Integrated air exhaust heat recovery system.
Extra-large wash chamber for larger wash items.
Suitable for dishes, glassware, cutlery, 1/1 GN containers, bakery trays and small crates.
500 × 500 mm rack size.
Six wash programmes.
Output of up to 40 racks per hour.
Full-colour touchscreen controls.
VarioPower adjustable wash pressure system.
Quadruple filtration system with clouding sensor.
Connected Wash with LAN and WLAN connectivity.
Double-skinned housing and door.
Integrated detergent and rinse aid dosing.
Drain pump and rinse booster pump included.
Guided self-cleaning programme.
Time-controlled automatic start-up and shut-down.

Specifications

Model: UC-XL Energy
Rack Size: 500 × 500 mm or 500 × 540 mm
Clear Entry Height: 404 mm
Wash Programmes: 6
Output: Up to 40 racks per hour
Rinse Water Consumption: From 2.0 litres per cycle
Controls: Full-colour touchscreen display
Wash System: VarioPower adjustable wash pressure
Filtration: Quadruple filtration system with clouding sensor
Heat Recovery: Integrated air exhaust heat recovery
Tank Capacity: 15.3 L
Connectivity: LAN, WLAN and USB
Drain Pump: Included
Construction: Double-skinned housing and door
Dimensions: 600 × 637 × 905–940 mm (W × D × H)
Net / Gross Weight: 75 kg / 85 kg
Power: 240V, 3.4kW, 15A (single phase standard); 415V, 7.9kW (optional three phase)
Standard Inclusions: 1x 1m Flexible Waste Hose, 1x 1m Flexible Water Connection Hose, 1x 15amp Plug and Lead, 1x 500 x 500 Flat Rack, 1x 500 x 500 Plate Rack

Delivery & Install Options

Delivery Only (Kerbside Drop)
Delivered in box via tailgate truck. Left at kerbside or loading area. No unpacking or placement.

Delivery + Uncrating & Placement
Delivered to your premises, unpacked, positioned in place, and all packaging removed. No installation included.

Delivery + Installation
Includes delivery, uncrating, positioning, and rubbish removal. Installed to adjacent existing services (power, water, waste), tested and ready for use.

POA
For some regional and remote areas, delivery costs can vary depending on location and access requirements. Customers in these areas can still place their order online as normal, however delivery will be quoted separately after checkout. A separate invoice for freight charges will then be sent prior to dispatch.

Important Note
Pricing assumes clear site access. Additional charges may apply for stairs, tight access, or lifting over obstacles. Please advise any access requirements when ordering.

Maintenance Plan

Maintenance Plans are available for selected products and are quoted on application (POA). Pricing and coverage will vary depending on the manufacturer, machine type, location, and servicing requirements. These plans are designed to help keep your equipment running efficiently and minimise downtime through scheduled servicing and preventative maintenance. Please contact our team for a tailored maintenance quote and available options for your machine.
